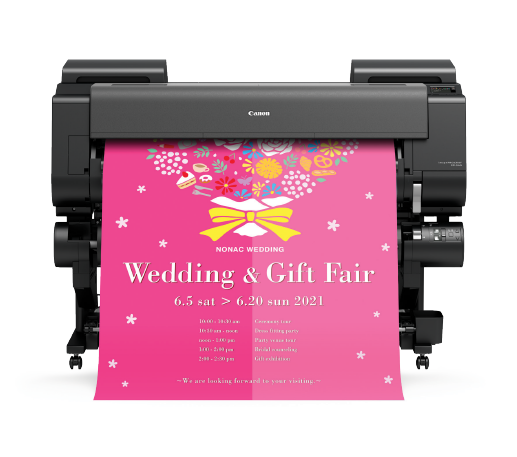

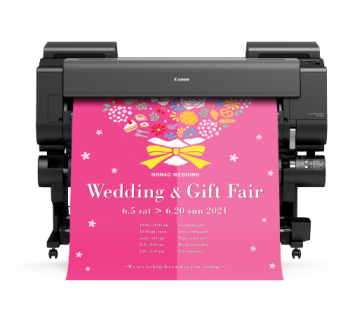

imagePROGRAF GP-540 หน้ากว้าง 44 นิ้ว

Printer Type

10-Colour + Fluorescent Pink, 44" (1,118 mm)

Number of Nozzles

18,432 nozzles (1,536 nozzles x 11 colours)

Maximum Print Resolution

2400 × 1200 dpi

Nozzle Pitch

600 dpi x 2

Line Accuracy^*1

± 0.1% or less

Minimum Ink Droplet Size

4 pl

Ink Capacity

Sales Ink: 160 ml / 330 ml / 700 ml (MBK, PBK, C, M, Y, GY, R, O, G, V, FP)
Bundled Starter Ink: 330 ml (MBK, PBK, C, M, Y, GY, R, O, G, V, FP)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)
PDF (Ver. 1.7)
JPEG (Ver. JFIF1.02)

Printing Solutions

Apple AirPrint, Direct Print Plus, Easy-PhotoPrint Editor, Canon PRINT Inkjet/SELPHY, Canon Print Service, Free Layout plus, PosterArtist Lite, Professional Print & Layout, imageRUNNER ADVANCE Direct Enlargement Copy

Management Solutions

Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB A Port:
USB Memory (Direct Print for JPEG/PDF files) USB B Port (Series B, 4 pins):
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer Gigabit Ethernet:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX/Auto-Negotiation
IEEE 802.3ab 1000base-T/Auto-Negotiation
IEEE 802.3x Full Duplex
SNMP, HTTP, TCP/IP (IPv4/IPv6) Wireless LAN:
IEEE802.11b/g/n
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Standard Memory

3 GB

Hard Disk

500 GB (Encrypted)

Plain Paper

Poster/Photos, Fluorescent, A0

1 min 37 sec [Fast (Custom Q5)]2 min 49 sec [Standard]

Heavyweight Coated Paper HG

Poster/Photos, Fluorescent, A0

2 min 49 sec [Standard]5 min 33 sec [High]

Glossy Photo Paper HG 170

Poster/Photos, Fluorescent, A0

5 min 33 sec [Standard]8 min 16 sec [High]

Media Feed and Output

Roll Paper / Cut Sheet

Front Load, Front Output^*3

Media Width (Roll / Cut Sheet)

152.4 ～ 1118 mm

Media Thickness (Roll / Cut Sheet)

0.07 ～ 0.8 mm

Min. Printable Length

Roll Paper

101.6 mm^*4

Cut Sheet

203.2 mm

Max. Printable Length

Roll Paper

18 m^*5

Cut Sheet

2133.6 mm

Maximum Outer Roll Diameter

170 mm or less

Borderless Printing Width
(Roll paper only)

152.4 ～ 1118 mm

Margins (Recommended Area)

Roll Paper

Top: 20 mm, Bottom/Side: 3 mm

Cut Sheet (Apple AirPrint)

Top: 20 mm, Bottom: 31 mm, Side: 3 mm

Cut Sheet (Others)

Top/Bottom: 20 mm, Side: 3 mm

Margins (Printable Area)

Roll Paper

Top/Bottom/Side: 3 mm

Roll Paper (Borderless Print)

Top/Bottom/Side: 0 mm

Cut Sheet (Apple AirPrint)

Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm

Cut Sheet (Others)

Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Dimensions (W x D x H)

Main Unit + Stand + Basket

1593 x 984 x 1168 mm (Basket Open)
1593 x 766 x 1168 mm (Basket Closed)

Main Unit + Stand + Basket + Roll Unit

1593 x 984 x 1168 mm (Basket Open)
1593 x 766 x 1168 mm (Basket Closed)

Weight

Main Unit + Stand + Basket

124 kg

Main Unit + Stand + Basket + Roll Unit

145 kg

Packaged Dimensions (W x D x H)

Main Unit + Stand + Basket + Pallet

1820 x 915 x 1042 mm

Roll Unit

1727 x 562 x 461 mm

Packaged Weight

Main Unit + Stand + Basket + Pallet

178 kg

Roll Unit

33 kg

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Printing^*7

99 W or less

Sleep Mode^*7

2.0 W or less

Power Off

0.3 W or less

Operating Environment

Temperature

15 ～ 30 °C

Humidity

10 ～ 80 % RH (no dew condensation)

Acoustic Sound

Acoustic Power^*8

Operation: Approx. 66 dB

Acoustic Pressure^*8

Operation: Approx. 49 dB (A)
Standby: 35 dB (A) or less

Roll Unit (Optional)

RU-43

2"/3" Roll Holder (Optional)

RH2-46

Ink Tank

PFI-810 (160 ml) / PFI-830 (330 ml) / PFI-870 (700 ml)
Matte Black / Photo Black / Cyan / Magenta / Yellow / Grey / Red / Orange / Green / Violet / Fluorescent Pink

Print Head

PF-10

Cutter Blade

CT-07

Maintenance Cartridge

MC-30
