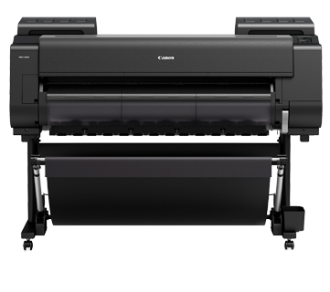

imagePROGRAF PRO-541S

การออกแบบที่มีประสิทธิภาพและผลงานคุณภาพ

เครื่องพิมพ์หน้ากว้าง imagePROGRAF PRO-540S คือ ทางเลือกที่ดีที่สุดสำหรับการพิมพ์ภาพขนาดใหญ่ให้ได้คุณภาพงานที่โดดเด่นในเวลาอันรวดเร็วและสร้างความเชื่อมั่นได้อย่างดีเยี่ยม

  • แกนกระดาษม้วนที่ 1 และ แกนกระดาษม้วนที่ 2 (อุปกรณ์เสริม)
  • ขนาด 1,118 มม. (44 นิ้ว)
  • หมึกกันน้ำ LUCIA PRO 8 สี
  • หน่วยความจำ 320 GB
  • เชื่อมต่อ WiFi
  • เชื่อมต่อ USB เพื่อพิมพ์ได้โดยตรง





คุณสมบัติ

Pigment LUCIA PRO และ หัวพิมพ์ขนาด 1.28 นิ้ว

หมึกกันน้ำ “LUCIA PRO” ได้รับการพัฒนาขึ้นเพื่อใช้กับเครื่องพิมพ์หน้ากว้างรุ่น PRO Series ในการพิมพ์ที่มีช่วงสีกว้างและละเอียด โดยการลงเฉดสีจะลงในปริมาณที่เท่าๆกัน และให้สีที่คมชัดแม้กับกระดาษประเภทมันวาว “Glossy Paper” อีกทั้ง ยังลดแสงสะท้อนบนกระดาษทุกประเภทอีกด้วย
​​​​​​​
imagePROGRAF PRO รุ่น 8 สี และ 12 สี มีหัวพิมพ์กว้างถึง 1.28 นิ้ว ที่ช่วยให้การพิมพ์ของคุณไวขึ้น ประหยัดเวลา ลดต้นทุนการพิมพ์ และ คุณยังได้งานพิมพ์ที่มีคุณภาพ เที่ยงตรง แม่นยำ

ความเร็วการพิมพ์สองเท่า

สีหลักทั้ง 4 สี (C, M, Y, K) ถูกจัดวางอย่างสมดุลเพื่อรองรับการพิมพ์ที่มีความเร็วสูง เช่น งานพิมพ์ภาพโปสเตอร์ขนาดใหญ่สามารถพิมพ์ได้ด้วยความเร็ว 2 เท่า เมื่อเทียบกับเครืองพิมพ์หน้ากว้างรุ่นอื่นๆ

อุปกรณ์แกนกระดาษม้วนคู่

แกนกระดาษม้วนสามารถเพิ่มได้อีก 1 แกน และ การเพิ่มกระดาษหรือการรับชิ้นงานที่พิมพ์ออกจากตัวเครื่องก็ส่ามารถทำได้ง่าย

ข้อมูลเพิ่มเติมเกี่ยวกับเทคโนโลยี

หมึก LUCIA PRO Pigment
LUCIA PRO หมึกกันน้ำเหมาะกับการใช้งานที่มีการพิมพ์สีอย่างละเอียด หรือ ขอบเขตพื้นที่ที่กว้าง โดยการลงสีตัวเครื่องจะลงในปริมานที่เท่ากันและให้สีทีคมชัด และ ลดแสงสะท้อนกับกระดาษทุกประเภท
หัวพิมพ์ความเร็วสูง
imagePROGRAF PRO รุ่น 8 สี และ 12 สี มีหัวพิมพ์กว้างถึง 1.28 นิ้ว ที่ช่วยให้การพิมพ์ของคุณไวขึ้น ประหยัดเวลา ลดต้นทุนการพิมพ์ และ คุณยังได้งานพิมพ์ที่มีคุณภาพ เที่ยงตรง แม่นยำ
ระบบประมวลผล
L-COA PRO ระบบประมวลผลที่ดีที่สุดของแคนนอน ที่ได้นำนวัตกรรม “Canon Image-Handling” และ Application Specific Integrated Circuit” (ASIC) มาไว้ด้วยกัน ทำให้การประมวลผลที่มีความละเอียดสูงและการส่งข้อมูลมีความเที่ยงตรง แม่นยำ และมีประสิทธิภาพสูงสุด
  ริงกิตแพลตฟอร์มกับคุณภาพเหนือชั้น
imagePROGRAF PRO มีนวัตกรรมที่ล้ำสมันที่สามารถกำหนดระยะห่างระหว่างหัวพิมพ์และกระดาษ ซึ่งการกำหนดระยะห่างทำให้การลงสีหรือหยดหมึกมีระยะที่เท่ากัน มีความแม่นยำ และเกิดความคลาดเคลื่อนน้อยที่สุด



ข้อมูลจำเพาะของ imagePROGRAF PRO-541S

Model PRO-541S
Printer Type 44" /1118mm
Ink Type Pigment inks / 8 colour:
Photo Black (PBK) / Matte Black (MBK) / Cyan (C ) / Magenta (M) / Yellow (Y) / Photo Cyan (PC) / Photo Magenta (PM) / Grey (GY)
Maximum Print Resolution 2400 x 1200dpi
Installation User installation
Physical Dimensions
W x D x H (mm), Weight (kg)
(including Roll Holder Set, excluding ink and print head)
Main Unit + Stand?+?Basket 1593 x 984 x 1168(Basket Opened)
1593 x 766 x 1168 (Basket Closed)
Weight approx. 122kg
Main Unit + Roll Unit + Stand + Basket Weight approx. 143kg
Packaged Dimensions
W x D x H (mm), Weight (kg)
Printer (Main unit with stand and pallet) 1820 x 915 x 1019mm;
Weight: approx. 176kg
Roll Unit 1727 x 562 x 461mm;
Weight: approx. 33kg
Power and Operating Requirements Input power AC 100 - 240V (50 - 60Hz)
Power consumption Operation: 112W or less
Sleep mode: 3.6W or less)
Power off: 0.5W or less
Recommended Environment Temperature: 15 ~ 30°C, Humidity: 10 ~ 80% RH (no dew condensation)
Acoustic Noise Acoustic pressure Operation approx. 49dB (A) (Glossy paper, Image, Print priority: Standard)
Standby: 35dB (A) or less
(Measured on ISO 7779 standard)
Acoustic power Operation approx. 6.6Bels or less (Glossy paper, Image, Print priority: Standard)
(Measured on ISO 7779 standard)
Detector and Adjustment Registration adjustment Automatic / Manual
Banding adjustment Automatic / Manual
Line length adjustment Manual
Head slant adjustment Automatic
Colour calibration Yes (with a colour calibration notification function)
Head gap adjustment Automatic / Manual (6 levels)
Non-firing detection Yes
Non-firing compensation  Yes
Roll media remaining detection function Yes
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Memory Standard memory 3GB
Hard Disk 500GB
Firmware Languages Printer language: SGRaster (Swift Graphic Raster), PDF & JPEG
PDF:
Supported Version 1.7
- List of the built-in fonts
Times-Roman, Helvetica, Courier, Symbol, Times-Bold, Helvetica-Bold, Courier-Bold, Zapf Dingbats, Times-Italic, Helvetica-Oblique, Courier-Oblique, Times-Bold Italic, Helvetica-Bold Oblique, Courier-Bold Oblique
JPEG:
Supported Version JFIF1.02
Job control IVEC
Status reply SNMP-MIB (Standard MIB, Canon-MIB), IVEC, CPCA
Direct Print JPEG / PDF
Type Flash ROM
Update Updated from USB, Ethernet port  (Utility use)
Operation Panel Display LCD (3.5 inch / 8.8 cm TFT colour)
Language on operation panel 16 Languages Selectable:
Japanese / English / German / Italian / Spanish / Brazilian Portuguese / Dutch / Polish / Russian / Danish / Simplified Chinese / Traditional Chinese / Korean / Thai / Indonesian / Turkish
Interface USB A Port Type USB Memory (Direct Print)
USB B Port Type Built in (Hi-Speed USB)
Mode Full Speed (12Mbit/sec), High Speed (480Mbit/sec), Bulk transfer
Connector type Series B (4 pins)
Gigabit Ethernet Type Built in
Standard • IEEE 802.3 10base-T
• IEEE 802.3u 100base-TX?/ Auto-Negotiation
• IEEE 802.3ab 1000base-T?/ Auto-Negotiation
• IEEE 802.3x Full Duplex
Protocol SNMP (Canon-MIB , HTTP, TCP / IP (IPv4 / IPv6))
Wireless LAN Standard IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
Security • WEP (64 / 128-bit)
• WPA-PSK (TKIP / AES)
• WPA2-PSK (TKIP / AES)
Print Head
Print Head Model PF-10
Type Bubble-jet on demand
Head configuration 12 Colour integrated Type x 1 print head
Nozzle pitch 600dpi x 2
Nozzle per chip 18,432 nozzles (1536 nozzles x 4 colours, 3072 nozzles x 4 colours)
Droplet size Minimum 4pl per colour
Head replacement User replacement
Ink Tank
Ink Tank Model PRO-540: PFI-51 (160ml) / PFI-53 (330ml) / PFI-57 (700ml)
Supply Tubing system (with sub-tank)
Sub Ink Tank Capacity Each colour 30ml
Colours Pigment 8 Colour:
Black (PBK) / Matte Black (MBK) / Cyan (C ) / Magenta (M) / Yellow (Y) / Photo Cyan (PC) / Photo Magenta (PM) / Grey (GY)
Capacity Sales use: 160 / 330 / 700ml
Starter use: 330ml
Level detection Detected by dot count and electrode (Empty)
Smart chip Each ink tank is equipped with EEPROM which stores its ink level
Media Handling
Media Feed and Output Roll paper One Roll, Front-loading, Front Output
Added Roll Paper One Roll, Front-loading, Front Output
(60 inch model: Default , 44 inch and 24 inch models: Option)
Cut sheet Front-loading, Front Output (Manual feed using media locking lever)
Paper path switch (roll / cut sheet) Manually switching (Roll paper, Cut sheet)
Automatic switching (Upper Roll, Lower Roll)
Delivery direction Face-up, Front side
Media Take-up Unit Dual directions rolling take-up
Maximum stacking number of delivered prints Standard position: 1 sheet
Flat position A2 landscape, glossy paper less 10 sheets, coated paper less than 20 sheets
(excludes strong curled condition)
Media Size Roll paper (Width) ISO: A3, A3+, A2, A1, A0
JIS: B4, B2, B1, B0
ARCH: 24", 30", 36"
Others: 8", 10", 14", 16", 17", 42", 44", Banner (300mm)
Cut sheet ISO: A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0
DIN: C4, C3, C2, C1, C0
JIS: B4, B3, B2, B1, B0
ANSI: 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40, 34 x 44"
ARCH: 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 x 38", 27 x 39", 30 x 42", 36 x 48"
Photo: (20 x 24"), (18 x 22"), (14 x 17"), (12 x 16"), (10 x 12"), (10 x 15"), (8 x 10"), US photo (16 ? 20")
Poster: 20 x 30", 30 x 40", 42 x 60", 44 x 62", 300 x 900mm
Others: 13 x 22"
Media Thickness Roll paper 0.07 ~ 0.8mm
Cut sheet
Maximum Outside Diameter of Roll Paper 170mm or less
Media Core Size Internal diameter of roll core: 2" / 3"
Media Width Roll paper 203.2 ~ 1118mm
Cut sheet 203.2 ~ 1118mm
Minimum Printable Paper Length 203.2mm
Maximum Printable Paper Length  Roll paper 18m (Varies according to the OS and application)
Cut sheet 1.6m
Margins Recommended area Roll paper:
Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet:
Top: 20mm, Bottom: 20mm, Side: 3mm
Printable area Roll paper:
Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless print):
Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet:
Top: 3mm, Bottom: 20mm, Side: 3mm
Borderless Printing Media Width [Recommended] 515mm (JIS B2), 728mm (JIS B1), 1030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 16", 30", 300mm
Environment certifications
RoHS?

Consumables for imagePROGRAF PRO-540S

Ink Cartridges / Bottles or Toner Cartridges

  • Consumables ราคา
    Cutter Blade CT-07 This email address is being protected from spambots. You need JavaScript enabled to view it.
    Maintenance Cartridge MC-30 This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 C (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 GY (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 M (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 MBK (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 PBK (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 PC (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 PM (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-51 Y (160ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 C (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 GY (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 M (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 MBK (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 PBK (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 PC (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 PM (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-53 Y (330ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 C (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 M (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 MBK (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 PBK (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 PC (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 PM (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 R (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57 Y (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    PFI-57GY (700ml) This email address is being protected from spambots. You need JavaScript enabled to view it.
    Print Head: PF-10 This email address is being protected from spambots. You need JavaScript enabled to view it.
